ROCKER SWITCH
-
蹺板開關
3001 Series ROCKER SWITCH
SPECIFICATION:
RATING : 10A 125VAC, 6A 250VAC (UL,CUL)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 30mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
蹺板開關
3013 ROCKER SWITCH
SPECIFICATION:
RATING : 15A 125VAC, 10A 250VAC
CIRUIT : ON-OFF (SPST), ON-ON (SPDT)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
-
蹺板開關
3003 ROCKER SWITCH
SPECIFICATION:
RATING : 1A 250VAC, 3A 125VAC (UL,CUL)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 55℃
ELECTRICAL LIFE : 6,000 CYCLES
-
蹺板開關
3010 ROCKER SWITCH
SPECIFICATION:
RATING :
15.1A 125VAC, 8A 250VAC (UL,CUL)
10(4)A 250VAC ~ T85 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~85°C
ELECTRICAL LIFE : 10,000 CYCLES
-
蹺板開關
3076 Rocker Switch
SPECIFICATION:
RATING :
6(4)A 250VAC ~ T85 (UL,CUL,ENEC)
4/64A 250VAC ~ T85(UL,CUL,ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~85℃
ELECTRICAL LIFE : 10,000 CYCLES -
蹺板開關

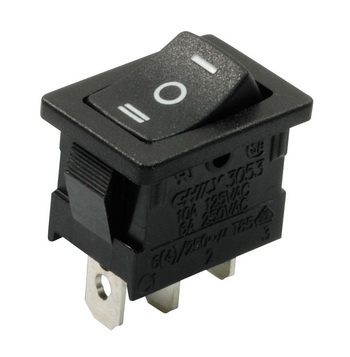

3018/3053 ROCKER SWITCH
SPECIFICATION:
3018 SERIES
RATING：10A 125VAC, 6A 250VAC (UL,CUL)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~85℃
ELECTRICAL LIFE : 6,000 CYCLES
3053 SERIES
RATING :
10A 125VAC, 6A 250VAC (UL,CUL)
6(4)A 250V ~ T85 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~85℃
ELECTRICAL LIFE : 10,000 CYCLES -
翹板開關
3022 Rocker Switch
SPECIFICATION:
RATING :
6A 125VAC, 4A 250VAC (UL, CUL)
4(1)A 250V~T85 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~85℃
ELECTRICAL LIFE : 10000 CYCLES -
翹板開關
3024B05 Rocker Switch
SPECIFICATION:
RATING :
16(8)A 250~T85, 8/128A 250V~T85 TV-8 250V (UL,CUL)
16(8)A250V~T85, 8/128A 250V (ENEC,CQC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 85℃
ELECTRICAL LIFE : 25,000 CYCLES
-
翹板開關
3024 Rocker Switch
SPECIFICATION:
RATING :
16(8)A 250V~ T85,8/128A 250V~ T85(UL, CUL,ENEC)
TV-8 250V~ 25E3 (UL,CUL)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~85℃
ELECTRICAL LIFE : 25,000 CYCLES -
防水開關IP44
3025 Rocker Switch
SPECIFICATION: (washable IP44)
RATING :
16A 125VAC, 10A 250VAC
16(4)A 250V~T85, 8/128A 250V~T85
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 85℃
ELECTRICAL LIFE : 10000 CYCLES
