AC OUTLET

SPECIFICATION:

RATING : 15A 125VAC, 10A 250VAC
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~55℃

SPECIFICATION:

RATING : 10A 250VAC
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE：70℃

SPECIFICATION:

RATING : 10A 250VAC
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE：70℃

SPECIFICATION:

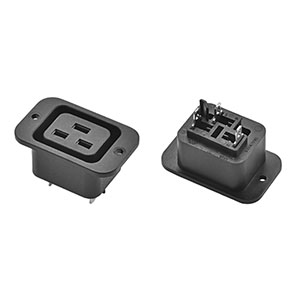

Euro Socket-Outlet

RATING : 16A 250VAC (VDE)

INSULATION RESISTANCE : DC 500V 100MΩ OR MORE

WITHSTAND VOLTAGE : AC 2000V FOR 1 Min

SPECIFICATION:

RATING :
16A 250V~ (EUROPE)
20A 250V~ T85(NORTH AMERICA)
INSULATION RESISTANCE : 100MΩ MIN
CONTACT RESISTANCE : 30mΩ MAX
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : -25~70℃
