TRIGGER SWITCH
-
工具機開關

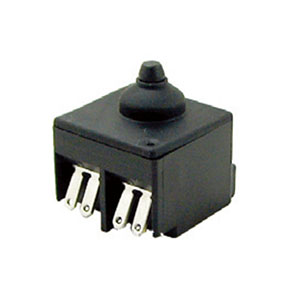

8301 Trigger Switch
SPECIFICATION:
RATING :
13A 125VAC, 6A 250VAC (UL,CUL)
8(8)A 250VAC ~ T55 5E4 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 55℃
ELECTRICAL LIFE : 50,000 CYCLES
-
工具機開關
8307 Trigger Switch
SPECIFICATION:
RATING :
22RA 125VAC~, 10RA 250VAC ~ 5E4 (UL, CUL,ENEC)
10A 125VDC T55 (UL,CUL,ENEC)
10(10)A 250VAC ~ T85 5E4 (UL,CUL,ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 85℃
ELECTRICAL LIFE : 50,000 CYCLES
-
工具機開關
8308 Trigger switch
SPECIFICATION:
RATING :
16A 125VAC, 8A 250VAC (UL,CUL)
8(8)A 250VAC ~ T55 5E4 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 55℃
ELECTRICAL LIFE : 50,000 CYCLES
